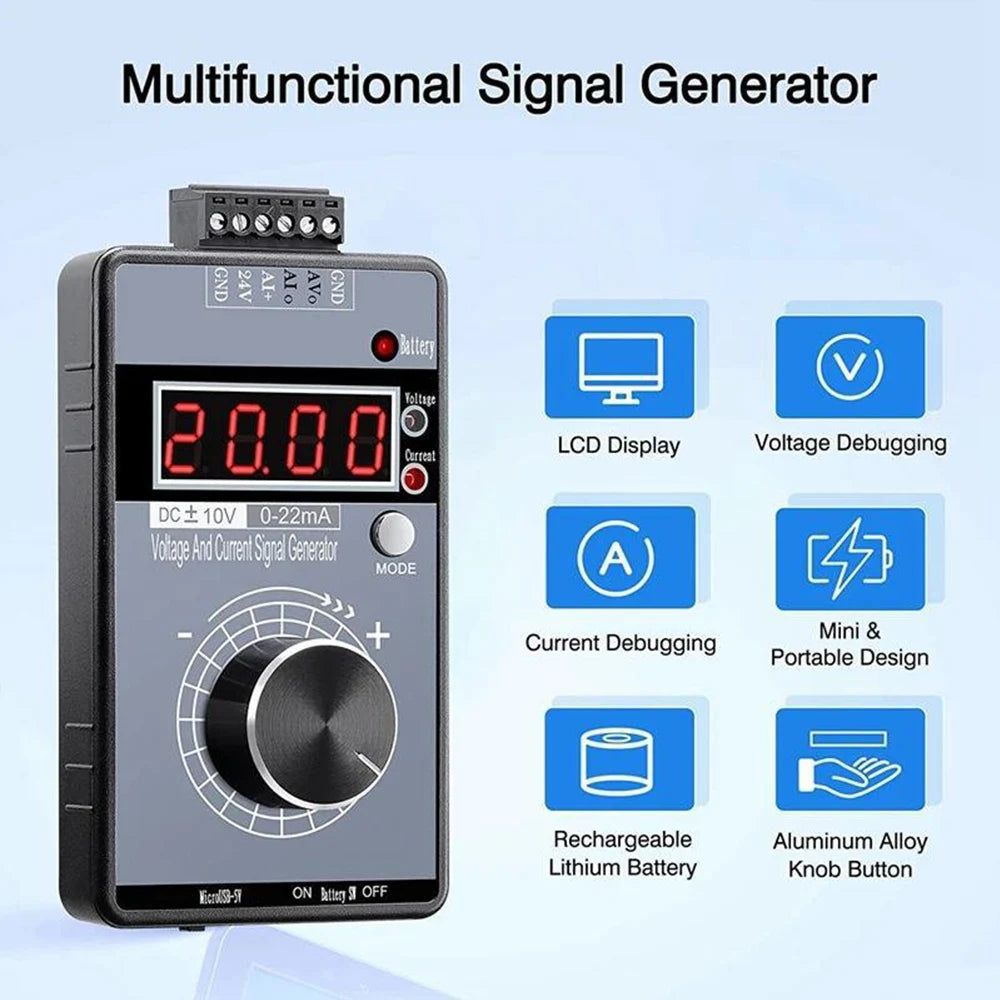

Feature：
1. Both the output range of voltage and current are programmable. Compatible with active and passive current source.
2. Voltage output is adjustable between -10V and 10V DC, error <0.05V after calibration, drive current <20mA.
3. Current output is adjustable between 0mA and 22mA, error <0.05mA after calibration, sampling resistance <500Ω.
4.Coarse adjustment fine adjustment dual mode, the number of adjustment turns can be set custom quick adjustment mode;
5. Fast signal output mode is more convenient for rapid debugging. Easy to use, user-friendly, simply twist the knob to adjust value and push it to confirm.
Specifications:
Material: ABS
Voltage: -10V to +10V (default 0-10V)
Current: 0mA to 22mA (default 0-20mA)
AWG: 24 to 14
Wiring Diagram：
GND: power supply negative(input)
24V: power supply positive(input)
AL+: current passive mode 24+ input
AIO: current signal output
AVO: voltage signal output
GND: Signal ground (connect 1-GND)
Packing List:
1 x Signal Generator
1 x USB Cable
1 x Screwdriver
4 x Alligator Clip
4 x Cold-pressed Terminal
