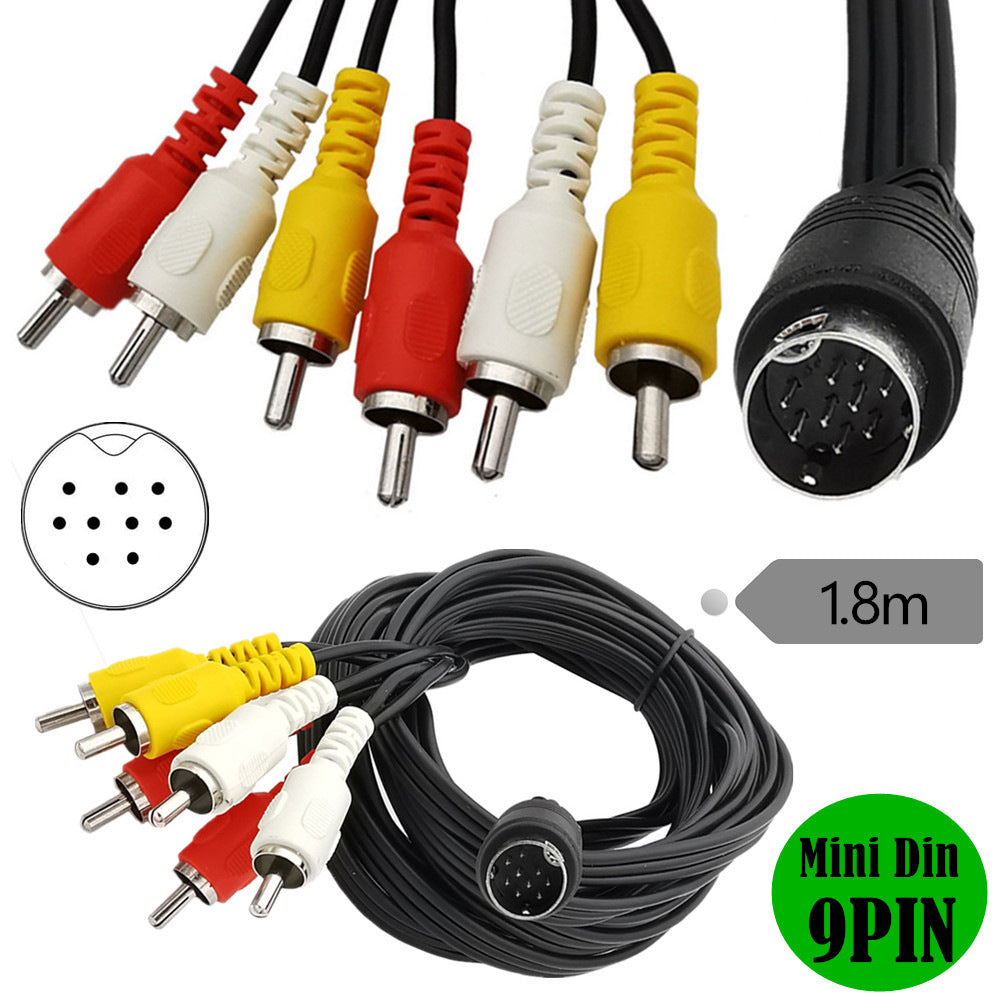

Mini DIN 9 Pin to 6 RCA Audio Video Composite Cable – 9 Pin Mini DIN to 6 RCA Male AV Cable for Retro Gaming Console, DVD Player, VCR, Projector & Vintage AV Equipment
一、Product Overview
The Mini DIN 9 Pin to 6 RCA Audio Video Cable is a specialized AV connectivity solution designed to bridge vintage audio‑visual equipment with modern display devices. Featuring a 9‑pin Mini DIN male connector on one end and 6 RCA male connectors on the other (typically color‑coded: red / white / yellow × 2 sets), this cable enables seamless transmission of composite video and stereo audio signals.
Whether you are a retro gaming enthusiast looking to revive a classic console, an archivist digitizing old VHS tapes, or a home theater user reconnecting a legacy DVD player or projector, this 9‑pin DIN to 6 RCA cable offers a reliable and straightforward plug‑and‑play solution—no drivers, no adapters, no hassle.
⚠️ Important Note on Compatibility – The 9‑pin Mini DIN connector has been used across various devices with different pin assignments. While this cable is designed to work with most standard pin configurations, certain proprietary implementations (such as Sanyo home theater systems) may use a non‑standard pin spacing. Please refer to the Pin Assignment Table and Compatibility Verification sections below before purchasing.
二、Key Features
🔌 9‑Pin Mini DIN to 6 RCA – Comprehensive AV Connectivity
The 9‑pin Mini DIN connector is a compact, circular multi‑pin interface historically used in a wide range of audio‑video equipment.This cable converts that proprietary 9‑pin output into six standard RCA connectors, providing:
Two composite video channels (for main + auxiliary video sources, or S‑Video separated luminance/chrominance where supported)
Four stereo audio channels (two left/right pairs) for multi‑channel audio transmission—supporting up to 6‑channel audio output when paired with compatible equipment
This design allows you to transmit both composite video and stereo audio signals simultaneously, making it an all‑in‑one AV breakout cable for devices with limited output ports.
🎮 Revive Your Retro Gaming & AV Setup
This cable is specifically engineered for connecting older audio‑visual equipment to contemporary TVs, monitors, and AV receivers.Perfect for:
Retro gaming consoles with 9‑pin video output
Vintage DVD players and VCRs
Legacy projectors and camcorders
Older sound cards and PC video outputs
PVR / DVR units and satellite receivers
With this cable, you can enjoy classic games and vintage media on modern displays without the need for expensive signal converters—just plug in and play.
⚡ High‑Quality Construction for Signal Integrity
Feature Specification Benefit
Conductor Material Bare Copper / Oxygen‑Free Copper (OFC) Ensures excellent electrical conductivity and minimal signal loss
Jacket Material High‑grade PVC Provides durability, flexibility, and resistance to wear and cracking
Shielding Foil + Braid Shielding (select models) Reduces electromagnetic interference (EMI) for clean, stable video and noise‑free audio
Connector Type 9‑pin Mini DIN Male + 6 RCA Male Standardized connectors for wide compatibility
Available Lengths 0.5m / 1.0m / 1.5m / 1.8m / 3.0m Flexible options for different room setups and equipment distances
Construction One‑piece injection molding Robust strain relief prevents cable breakage at connector joints
Temperature Rating Up to +80°C Suitable for extended use in various environments
🎨 Color‑Coded RCA Connectors for Easy Installation
The six RCA connectors are standard color‑coded to eliminate guesswork during installation:
Yellow – Composite video
Red & White – Right / Left stereo audio (main channel)
Yellow – Composite video (secondary / auxiliary)
Red & White – Right / Left stereo audio (secondary channel)
Simply match the colors to the corresponding input ports on your TV or AV receiver, and you are ready to go.
🔌 Plug & Play – No Drivers or External Power Required
This is a passive analog cable. No software installation, driver updates, or external power adapters are needed.Just connect the 9‑pin end to your source device, connect the RCA ends to your display or receiver, and switch your TV to the correct AV input channel.
三、Comprehensive Compatibility Guide
⚠️ VERY IMPORTANT: Verify Your Device Before Purchasing
To determine whether this cable is the right fit for your equipment, check the following:
1. Identify the 9‑pin port shape. Measure the connector spacing: some brands use standard Mini DIN 9‑pin spacing (two rows, middle three pins offset); others (like certain Sanyo home theater systems) use a non‑standard uneven pin spacing. These are not interchangeable.
2. Understand what this cable does (and does not do):
✅ Compatible Use Cases ❌ NOT Compatible / Not Recommended
Connecting a 9‑pin AV source (camera, game console, DVD player, VCR, projector) to a TV or monitor with RCA inputs Connecting a modern device that only has HDMI output
Transmitting analog composite video and stereo audio signals Converting analog to digital (requires an active converter)
Reviving retro gaming and vintage AV equipment Sending component video (YPbPr) signals
Digitizing old tapes via a capture device (when used with an AV‑to‑USB capture card) Audio‑only or data‑only applications where pin definition differs
3. Understand the 6‑RCA output allocation. This cable provides two composite video outputs and four audio outputs (two stereo pairs). If your device requires S‑Video (4‑pin Mini DIN) separation or SCART (Euroconnector) wiring, a different adapter type may be needed. However, the MiSTer Multisystem 2 (retro FPGA gaming device) has been documented to work with Mini DIN 9‑to‑RCA cables for its analogue output port.
4. Confirm the pinout assignment. Different manufacturers may map the 9 pins differently. If possible, refer to your device’s service manual for the 9‑pin pinout diagram, and compare against the Pin Assignment Table below.
💡 If you are unsure about compatibility, contact us with your device make and model. We will help you verify before you purchase.
🔧 Pin Assignment Reference Table (Standard Configuration)
Please note: pin assignments vary by manufacturer. The table below reflects the most common industry standard. If your device manual specifies a different mapping, please refer to your manual.
9‑Pin Mini DIN Pin Common Signal Assignment Corresponding RCA Connector
Pin 1 Composite Video 1 / Luma (Y) Yellow RCA #1 (Video 1)
Pin 2 Audio Left 1 White RCA #1 (Audio L)
Pin 3 Ground (Video/Audio Common) External shielding
Pin 4 Audio Right 1 Red RCA #1 (Audio R)
Pin 5 Chroma (C) / S‑Video color component Yellow RCA #2 (Video 2, where supported)
Pin 6 Composite Video 2 — (varies)
Pin 7 Audio Left 2 White RCA #2 (Audio L 2)
Pin 8 Audio Right 2 Red RCA #2 (Audio R 2)
Pin 9 Ground (Secondary) / No Connection External shielding
For complex applications involving RS‑232C serial control (e.g., Sharp projectors), note that some manufacturers connect Pin 4 (RS) and Pin 6 (CS) internally on the controlling device side.This cable is designed for AV signal transmission only and is not intended for RS‑232C serial control applications unless specifically documented.
📋 Compatibility with Common Devices
Brand / Category Model / Series Compatible? Notes
Sanyo Home theater systems (tuner/DVD player to subwoofer) ⚠️ Specific model only Uses a non‑standard 9‑pin spacing; standard cable will not fit. Check pin spacing before purchase.
Sharp XG series projectors, XV series projection TVs ⚠️ Check pin assignment first Some Sharp devices use 9‑pin Mini DIN for RS‑232C serial control rather than AV signal transmission. Verify your use case.
Retro Gaming Consoles MiSTer Multisystem 2 (analogue output port), various legacy consoles ✅ Compatible Known to work with MiSTer Multisystem 2 for composite video output.
General AV Equipment DVD players, VCRs, camcorders, projectors, sound cards, PVRs, satellite receivers ✅ Compatible Most standard 9‑pin Mini DIN AV implementations are supported.
Automotive / Car Audio Video receivers, monitors, audio systems ⚠️ Varies Some car audio systems use 9‑pin Mini DIN with different pin mappings. Check your manual.
What‘s Included |
1 × 1.8m Mini DIN 9 Pin to 6 RCA Audio Video Cable
