Head-mounted magnifying glass, equipped with 4 optical lenses—1.5x to 17x, 8 magnification combinations, adjustable headband, suitable for jewellery making, integrated circuit repair, reading and craft hobbies

Head-mounted magnifying glass, equipped with 4 optical lenses—1.5x to 17x, 8 magnification combinations, adjustable headband, suitable for jewellery making, integrated circuit repair, reading and craft hobbies (white light)

See the details clearly, work with precision. Keep your hands free and see every detail.

Product Overview

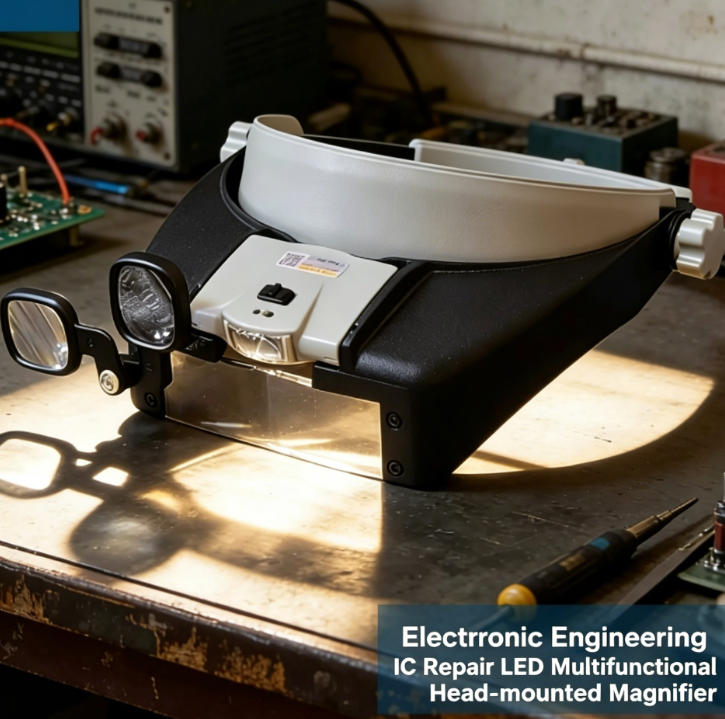

The BAI SITE LED Multi-Function Head-Mounted Magnifier is a professional-grade, hands-free visual aid designed for engineers, jewellers, hobbyists and the elderly. Equipped with 4 removable optical lenses, it offers 8 magnification combinations ranging from 1.5x to 17x, allowing you to easily switch between different working distances and levels of detail. The built-in dual white LED headlamp allows you to work with confidence even in low-light conditions.

Key Features
🔍 1.5X–17X – 8 magnification combinations
4 optical lenses (A, B, C, D)
From 1.5X (C lens only) to 17X (A+B+C+D)
Each combination features a specific focal length for optimal viewing

Lens Combination    Magnification, Focal Length
C    1.5x, 333 mm
C+D    3.0x, 166 mm
A+C    7.5x,  66 mm
A+C+D    9.0x, 55 mm
B+C    9.5x, 52 mm
B+C+D    11.0x, 45 mm
A+B+C    15.5x, 32 mm
A+B+C+D    17.0x, 29 mm

💡 Dual White LED Headlamp
2 white LEDs provide shadow-free illumination
Ideal for night-time use, IC repair, jewellery inspection or reading in low light
Powered by 2 AAA batteries (not included)

👓 Adjustable Headband – One Size Fits All
3-position head circumference adjustment

Pull the knob to unlock
Turn clockwise (reduce) / turn anti-clockwise (increase)
Press the knob to lock
Suitable for adults, seniors and technicians

🔧 Wide range of applications
IC / electronics repair
Jewellery and antiques appraisal
Drawing and reading blueprints
Precision crafts and hobbies
Reading and newspaper reading for seniors

Product Specifications
Parameters: Details
Brand: BAI SITE
Model: R
Main lens magnification: 1.5x
Supplementary lenses: 6x / 8x (stackable)
Lens material: Optical-grade acrylic
Frame material: ABS
Product dimensions: 23 x 18 x 5 cm
Headlamp: Dual white LED
Power supply: 2 x AAA batteries (not included)

Lens Size Guide
Main Lens: 9 cm x 3 cm
Secondary Lens: 3 cm x 2.5 cm
User Guide – How to Adjust the Headband
Pull the knob to unlock
Turn clockwise (to reduce size) / Turn anti-clockwise (to increase size)
Once adjusted to a comfortable fit, press the knob to lock

Why Choose BAI SITE?
✅ 8-in-1 magnification system – no need to buy multiple tools
✅ Optical acrylic lenses – lightweight and clear
✅ Hands-free design – boosts efficiency for repairs and crafts
✅ Fits all head sizes – suitable for the whole family
✅ Includes an LED light — usable even in low-light conditions

Package Contents
1 x BAI SITE Head-Mounted Magnifier (Main Frame)
4 x Optical Lenses (A, B, C, D)
1 x User Manual (includes magnification/focal length chart)

(Batteries not included)

Ideal for
🔧 Electronics/IC repair engineers
💎 Jewellery and antique collectors
👨🦳 Elderly people with presbyopia or declining eyesight
🧵 Craft enthusiasts (embroidery, model making, watch repair)
📖 Readers and artists
