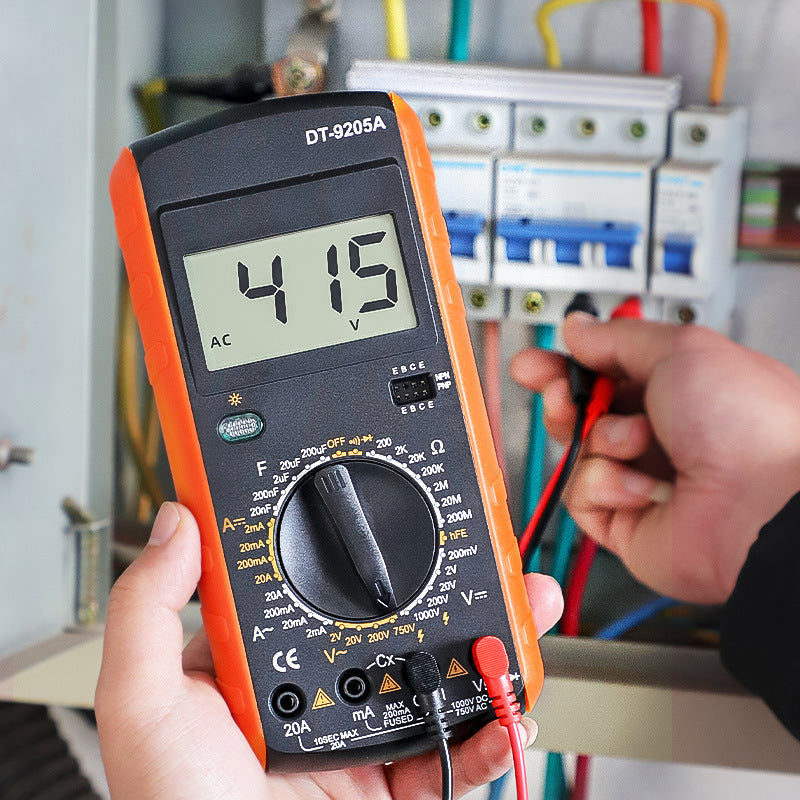

DT-9205A Digital Multimeter – High-Precision Industrial-Grade Auto-Ranging Multimeter with Backlit Display, Continuity Buzzer & Anti-Burn Protection
Product Description
Industrial-grade digital multimeter supporting AC/DC voltage/current, resistance, capacitance, diode, transistor hFE, and continuity buzzer testing. Large digital display, anti-burn protection, suitable for electronic repair, circuit testing, electrical maintenance, and other applications.
Key Selling Points
High-precision measurement: DC voltage accuracy ±0.8%, capacitance measurement up to 200μF
Quick-response continuity buzzer: Dual alert with buzzer and indicator light when circuit is conductive
32-function range: Covers electronic repair, electrical testing, and educational experiments
Triple protection circuit: Overload protection / Short-circuit protection / Overcurrent protection
Transistor hFE Test: Direct identification and measurement of NPN/PNP transistors
Neutral and Live Wire Identification + Phase Loss Detection: Suitable for rapid troubleshooting of three-phase circuits
High-Definition Large Digital Display: Data is clearly visible at a glance; simple to operate
Product Technical Specifications
Function Range Maximum Accuracy
DC Voltage 200mV ~ 1000V ±(0.8%+3)
AC Voltage 200 mV ~ 750 V ±(0.8%+3)
DC Current 2 mA ~ 20 A ±(1.2%+2)
AC Current 2 mA ~ 20 A ±(1.2%+3)
Resistance 200 Ω ~ 200 MΩ ±(0.8%+2)
Capacitance 2nF ~ 200μF ±(4.0%+10)
Transistor hFE NPN / PNP ✓
Diode/Continuity Buzzer + Indicator Light ✓
Applications
Electronics repair
Circuit continuity testing
Home appliance repair
Industrial equipment maintenance
Three-phase power phase failure troubleshooting
Electronics education in schools
Automotive circuit testing
Panel and Operating Instructions
COM jack: Black probe common terminal
Function jacks: Voltage/Resistance/Capacitance/Continuity/Diode
20A jack: High-current measurement
hFE Jack: Direct insertion of transistor EBCE pins
Range Selector: Same-colored ranges indicate different measurement ranges for the same function
Package Contents (Suggested List Format)
DT-9205A Multimeter ×1
9V Alkaline Battery (Included) ×1
Test Leads ×1 Pair
User Manual ×1
