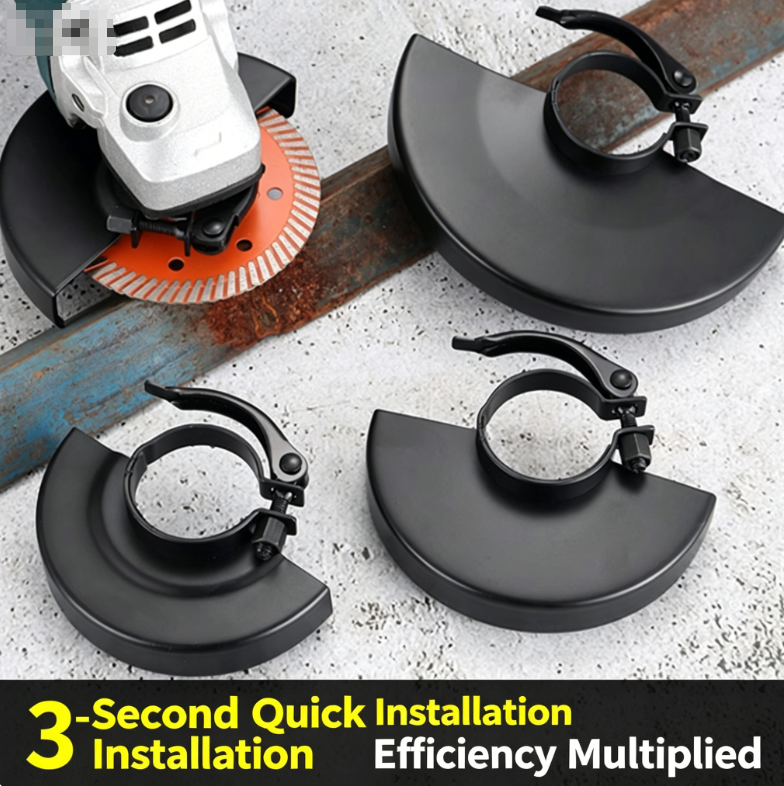

Angle Grinder Guard: Quick-Release Reinforced Grinding Wheel Guard | Universal Fit for 100mm, 115mm and 125mm Models | Secures with a Single Click – No Screwdriver Required

Angle Grinder Guard: Quick-Release Reinforced Grinding Wheel Guard | Universal Fit for 100mm, 115mm and 125mm Models | Secures with a Single Click – No Screwdriver Required | Suitable for Wood, Metal and Stone Cutting and Grinding Discs

Product Description
Upgraded quick-release angle grinder guard featuring a reinforced steel ring and a push-to-lock design, allowing for tool-free installation. Suitable for 100mm, 115mm and 125mm angle grinders, compatible with a wide range of discs including woodworking, metal, marble and louver sanding discs. Handles cutting, sanding and rust removal with a single guard, tripling efficiency.

Key Features
1. One-Click Secure · Quick-Release Design
Press-fit latches require no screwdriver; install and use immediately. Removal is equally straightforward, ensuring greater efficiency on site.

2. Thickened Construction · Superior Stability
Crafted from premium steel with a reinforced rim, the robust structure resists deformation even with prolonged use, ensuring reliable protection.

3. Compatible with a wide range of blades and applications
Suitable for:
Cutting wood/plastic
Cutting metal/angle iron
Cutting tiles/marble
Cutting jade/glass
Sanding wood/metal
Metal rust removal and polishing

4. Comprehensive range · Precise fit
Available in three sizes: 100mm, 115mm and 125mm. Simply select the size based on the outer diameter of your angle grinder head and the blade dimensions.

Installation and Selection Guide (Illustrated Step-by-Step Instructions)
Installation Steps (4 Easy Steps)
Adjust the diameter: Adjust the guard’s diameter to match the angle grinder head
Slip onto the machine: Simply slide the adjusted guard onto the angle grinder head
Press the latch: Secures with a single press, no tools required
Adjust the angle: Rotate to the desired position, fit the blade and you’re ready to go

How to Select the Right Model
Measurement Method    Instructions
Caliper Measurement (Recommended)    Clamp the caliper around the maximum outer diameter of the angle grinder head; the reading is the required inner diameter
String Measurement    Wrap a string around the angle grinder head once, measure the length ÷ 3.14 = inner diameter
Cutting Disc Reference    Model 100 fits saw blades ≤100mm, Model 115 ≤115mm, Model 125 ≤125mm
Product Specifications Table
Model    Outer Diameter    Compatible Disc Types    Material
Model 100    111mm    Cutting discs, grinding discs, marble discs, etc.    Heavy-duty steel
Model 115    124mm    As above    Heavy-duty steel
Model 125    135mm    As above    Heavy-duty steel
Note: Standardised interface height of 43mm, compatible with mainstream angle grinder brands.

Applications
Metal grinding/polishing
Pipe cutting
Stone/tile cutting
Wood cutting
Metal rust removal
DIY crafts
