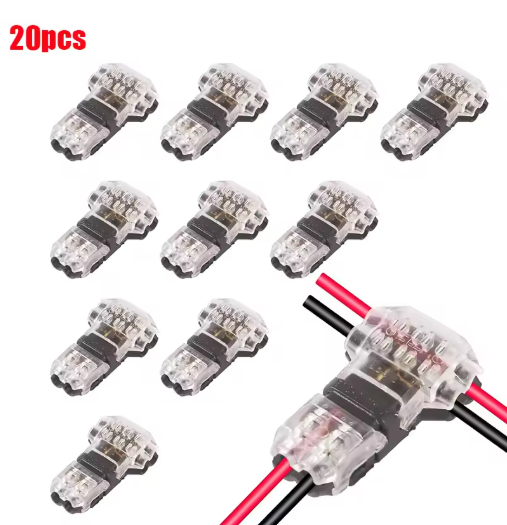

Say goodbye to wire strippers and soldering irons—the 2-Pin T-Type Quick-Connect Terminal requires no wire stripping, no soldering, and no tools. It locks in place with a single squeeze, completing the connection in just 30 seconds!
I. Product Overview
Still struggling with wiring? Stripping, twisting, soldering, and wrapping with electrical tape—these tedious steps are not only time-consuming but also pose potential safety hazards.
The 2-Pin T-Type Quick-Connect Terminal, designed specifically for low-voltage electrical connections, utilizes insulation displacement (IDC) technology. No need to strip wire insulation, no soldering, and no tools required—simply insert the wire, press to lock, and a reliable electrical connection is established.
The transparent housing design allows you to see the connection status at a glance, maximizing safety.
II. Key Advantages
⚡ No Stripping · No Soldering · No Tools
Built-in piercing metal contacts automatically penetrate the insulation when the wire is inserted, making direct contact with the copper core—no wire strippers, no soldering iron, and no heat-shrink tubing required. It truly achieves “plug-and-lock.”
🔒 Secure Locking · No Loosening
Innovative latch-lock design locks with a single press, firmly securing the wire. After repeated laboratory testing, it maintains tight contact even under temperature fluctuations and in vibrating environments, eliminating the risk of poor contact or loosening.
🔄 Reusable
If adjustments or maintenance are needed, simply open the latch to remove the wire. The connector is reusable, offering greater flexibility for repairs and upgrades.
🛡️ Safe and Durable
Flame-retardant polycarbonate (PC) housing, resistant to high temperatures and impacts
Pure copper conductive contacts, offering excellent conductivity and corrosion resistance
Rated current: 10A; Rated voltage: 300V
Operating temperature range: -30°C to +85°C
📏 Compact and Small
Measuring just 25 mm × 10.55 mm, it takes up minimal space and can be easily concealed in narrow cable trays or inside equipment.
III. Applicable Wire Gauges
Item Parameter
Applicable Wire Type Solid / Stranded
Applicable Gauge 18–24 AWG
Wire Diameter Range Approx. 0.2–1.0 mm²
⚠️ Friendly Reminder: Due to variations in the diameter of 18 AWG wires on the market, this connector may not be fully compatible with some 18 AWG wires. We recommend conducting a small-scale test first to confirm compatibility.
IV. Four-Step Installation—Easy to Learn
STEP 1 — Open the top cover
STEP 2 — Feed the main wire through the retaining ring
STEP 3 — Press down on the top cover; it locks into place when you hear a “click”
STEP 4 — Verify that all contacts are securely locked in place
💡 The entire installation process takes less than 30 seconds and requires no specialized knowledge—even beginners can do it with ease!
V. Applications
This product is widely used in various low-voltage electrical connection scenarios:
🚗 Automotive Wiring Harnesses: Headlight circuits, steering wheel controls, cigarette lighter wiring, backup camera systems
💡 LED Lighting: Strip light connections, spotlights, decorative lighting circuits
🏠 Smart Home: Smart sensors, smart switches, faucet sensors
🔊 Audio-Visual Equipment: Sound systems, in-car audio, video equipment
🎨 DIY Projects: Model building, 3D printers, creative projects for electronics enthusiasts
📊 Technical Specifications Table
Specifications: Details
Product Name: 2-Pin T-Type Quick-Connect Terminal Block
Connector Type: T-Type (T-Tap / T-Dual Way)
Number of Pins: 2-Pin
Compatible Wire Gauge: 18–24 AWG (Solid/Stranded)
Maximum Current: 10A
Maximum Voltage: 300V
Operating Temperature: -30°C to +85°C
Housing Material: Flame-retardant polycarbonate (PC)
Contact Material: Pure copper
Installation Method: Tool-free snap-fit
Connection Method: Insulation Displacement Connection (IDC)
Reusable ✅ Yes
