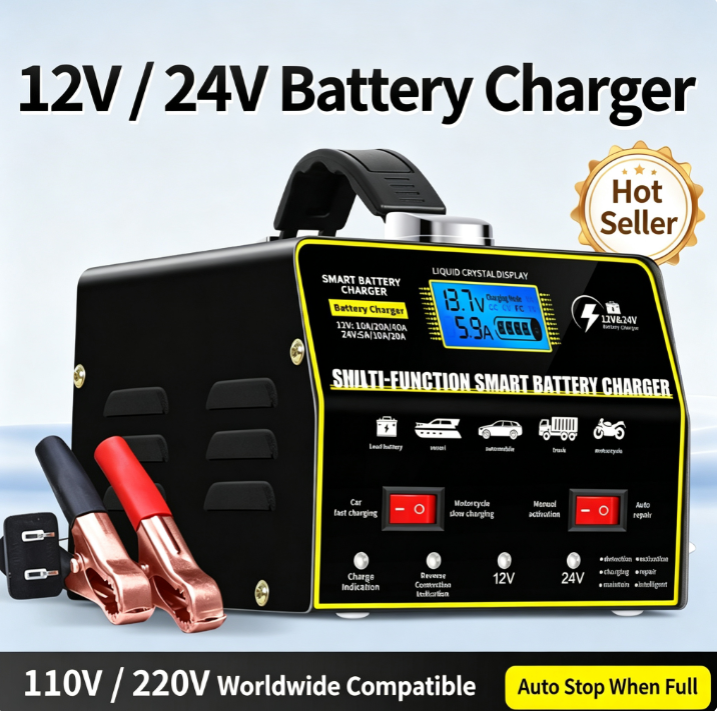

12V/24V 10A Car Smart Pulse Battery Repair Charger Automatically stops when fully charged; 4-in-1 fully automatic functionality—detection, repair, fast charging, and float charging; six safety protections

Color: Black or gray (shipped at random)

A smart charger that can “diagnose” batteries, giving old batteries a new lease on life
When a battery is too low to start the engine, many people’s first thought is, “It’s time to replace the battery.” But in the vast majority of cases, the battery isn’t actually dead—it’s just that prolonged undercharging has caused lead sulfate crystals to form on the surface of the plates, a process known as “sulfation.” Ordinary chargers can only provide a simple top-off charge; prolonged charging can easily cause overheating and swelling, which actually shortens the battery’s lifespan.

The real solution is a smart charger that can identify the battery’s condition, automatically adjust the current, and perform pulse restoration.
The 12V/24V Smart Pulse Restoration Charger is exactly such a device.

Pulse Restoration—A “Deep Spa Treatment” for Your Battery
After prolonged undercharging, storage at low temperatures, or frequent shallow charge-discharge cycles, insoluble lead sulfate crystals tend to form on the surface of lead-acid battery plates—a phenomenon known as “sulfation.” Sulfation significantly reduces battery capacity and starting power, and can even lead to premature failure.

The smart charger employs pulse restoration technology, using microcurrent oscillations at a specific frequency to gradually break down the sulfation crystals, “freeing up” the battery, restoring some of its activity, and extending its service life. This isn’t some mystical process—the pulse charger superimposes a pulsed current at a specific frequency onto a constant voltage and constant current charge, effectively removing sulfation crystals from the plates. According to user tests, a scooter that had been left unused for three months—with the battery voltage down to just 8V—was successfully started the next day after being connected to the charger overnight.

Smart Charging—Just Plug It In and Forget About It; It Will “Take Its Own Pulse”
The charger features a built-in smart microcomputer chip and employs a multi-stage smart charging mode:
Detection and Diagnosis: Automatically detects battery voltage and status upon connection
Pre-charge and Wake-up: Performs low-voltage pre-charging to reactivate deeply discharged batteries
Constant-Current Fast Charging: Rapidly replenishes power with high current
Constant-Voltage Charging: Precisely controls voltage to prevent overcharging
Float Charging and Maintenance: Automatically switches to trickle float charging once fully charged, protecting the battery without wasting power
The entire process runs fully automatically, requiring no manual intervention. It automatically cuts off power when fully charged—you can simply plug it in and walk away.

High-Definition LCD Display—Charging Status at a Glance
Equipped with a high-definition LCD display that shows real-time information:
Current voltage (e.g., 13.7V)
Charging current (e.g., 5.9A)
Battery charge percentage (0%–100% progress display)
Charging mode (CC/CV/FC and other staged modes)
Charging progress and battery status are clearly visible—no more guesswork.

12V/24V Universal — One Unit for Your Entire Fleet
Supports automatic recognition of both 12V and 24V voltages, compatible with the vast majority of lead-acid batteries on the market:
Motorcycles (12V)
Passenger Cars / SUVs (12V)
Vans (12V/24V)
Trucks (24V)
Off-road Vehicles / Construction Vehicles (24V)
Agricultural Vehicles / Tricycles (12V/24V)
Important Note: This product is intended for lead-acid batteries only; do not use it to charge lithium batteries.

Six Major Smart Safety Protections—No Compromises on Charging Safety
Protection Features: Description
Reverse Polarity Protection: Automatically cuts off power if positive and negative terminals are reversed, preventing damage to the unit
Short-Circuit Protection: Automatic protection in case of output short-circuit
Overvoltage Protection: Automatically cuts off power when voltage is too high
Overcurrent Protection:    Automatically adjusts when current exceeds limits
Overheat Protection:    Automatically reduces power or shuts down when temperature is too high
Low-Voltage Protection:    Prevents battery damage from over-discharge
With multiple safety protections, even beginners can use it with confidence.

Product Specifications
Item:    Specifications
Product Name:    High-Power Smart Pulse Repair Charger
Product Power:    400W
Input Voltage:    220V or 110V (Universal for Multiple Countries)
Output Voltage:    12V / 24V
Output Current:    12V–12A / 24V–9A
Power Cord Length:    70CM
Product Dimensions:    18.5CM × 13CM × 11.3CM
Charging Range:    Suitable for 12V/24V lead-acid batteries (Do not charge lithium batteries)

Why Choose the Bino Smart Charger?
✅ Pulse Restoration Function—Removes sulfation crystals to extend battery life
✅ Fully Intelligent Automatic Charging—Plug and charge; automatically stops when fully charged; no supervision required
✅ Universal 12V/24V Compatibility—One unit handles motorcycles, cars, and trucks
✅ High-Definition LCD Display—Real-time monitoring of voltage, current, and battery level
✅ Six Major Safety Protections—Full protection against reverse polarity, short circuits, overvoltage, overcurrent, overheating, and undervoltage
✅ High-Power Pure Copper Design—400W power output ensures fast charging, excellent heat dissipation, and stable operation

Applications
Winter battery drain: Can’t start your car in cold weather? Plug it in overnight, and it’ll start easily the next day
Long-term vehicle storage: Top up the battery for two hours weekly to maintain a stable voltage
Restoring old batteries: Severe sulfation or weak starting power? The pulse restoration mode is here to help
Households with multiple vehicles or fleets: One charger handles both 12V and 24V vehicles
