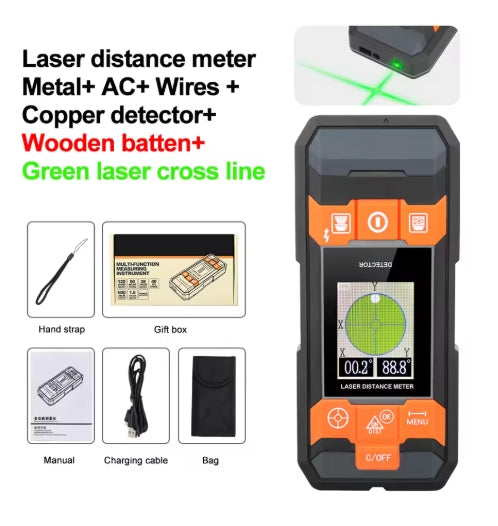

Type B:Metal Detector Laser distance meter Rangefinder Wall Scanner Copper AC Wiring Wood Finder Wires Depth Tracker Tape Measure
Laser Cross Line and Electric Bubble Level:Equipped with a laser cross line and electric bubble level for precise alignment and leveling tasks.
Scabble Finder|Metal Detector|Multifunctional Measuring Instrument:Combines metal detection, wire/copper pipe detection, and laser ranging for versatile use in construction and electrical work.
Rechargeable Battery and USB Charging:Features a large capacity lithium battery with USB charging for convenient and on-the-go use.
High Precision Sensor:Detects ferrous metals up to 100mm deep and non-ferrous copper up to 80mm, ensuring accurate measurements.
Data Storage and Voice Broadcast:Stores 30 sets of data and provides real-time voice broadcast for efficient and clear communication.
1. Multifunction measuring instrument: Laser distance meter, Metal/Wire Pipe/Copper pipe/AC Detection
2. Wooden batten detection,only for GD210D GD210DR GD210DG
3. Laser cross line, only for GD210DR GD210DG
4. Electric bubble level, only for GD210DR GD210DG
5. 1.8 inch color LCD display with backlight
6. Single function buzzer alarm without data
7. Real life voice, Real-time broadcast
8. Store 30 sets of measuring data
9. Large capacity lithium battery, USB charging
Technical Details
1. Brand: GVDA
2. Model: GD210C GD210D GD210DR GD210DG
3. Maximum Detection depth: Ferrous metals:100mm / Non-ferrous(copper): 80mm /
Copper wire(4≥mm2): 40mm / Foreign body (Wooden batten) 20mm/38mm
4. Operating humidity range: Metal model: 0-85%RH / Foreign body: 0-60%RH
Laser Ranging Parameter
6. Accuracy of measurement: ±5mm
7. Unit Selection: m/in/ft
8. Measuring range(no reflector): 0.05-40m
9. Measuring time: 0.3-4 seconds
10. Laser type: 620-670nm, <1mw
11. Self-closing laser: 20 seconds
12. Store data: 30 set of data
14. Automatic shutdown time: about 5 minutes
15. Screen: 1.8inch Color Screen
16. Power supply: Built in 300mAh Lithium battery
17. Product Size: 135 x 60 x 25mm
18. Operation temperature: 0-40°C
19. Storage temperature range: -20-60°C
Packing information
1x Multifunction Instrument
1x USB Cable
1x User manual
1x Lanyard
Type A-only Detection function
FEATURES
HIGH-PRECISION DETECTION: Equipped with advanced sensors, this detector accurately locates metal, live wires behind walls, preventing accidents and ensuring precise drilling and installation.
DEEP DETECTION CAPABILITY: Capable of detecting up to 10cm depth. It detects metal up to 10cm and live wires up to 5cm. This ensures you can find hidden objects deep within the walls.
USER-FRIENDLY INTERFACE: The large LCD display provides clear readings and visual indicators for different detection modes. Easy-to-read icons and alerts help you quickly understand the detection results.
AUDIBLE AND VISUAL ALERTS: The detector offers both sound and visual alerts when it identifies metal, live wires. This dual alert system ensures you don’t miss any hidden objects behind the wall.
BATTERY OPERATED: Powered by standard batteries, providing convenience and portability. No need to worry about power cords or finding a nearby outlet.
SPEC
Display: LCD Screen with Backlight
Power Source: 9V Battery ( included)
Battery Life: Up to 6 hours of continuous use
Auto Power Off: Automatically shuts off after 5 minutes of inactivity
Working Temperature Range: -10°C to 50°C
Working Humidity Range: 0-85% RH
Functions: Rebar detection, metal detection, battery level display, electrical wire detection, copper wire detection, distance display
Package includes: 1 * Multi-Function Wall Metal and Wire Detector
NOTES
Keep the sensor clean and store the detector in a cool, dry place when not in use to maintain accuracy and longevity.
Always double-check detection results before drilling or cutting
