Product Overview: A truly pocket-sized ‘industrial-grade X-ray’
Have you ever found yourself at a loss when trying to inspect sewer leaks, faults inside a car engine, or concealed wiring within walls? Before the advent of endoscopes, you could only ‘guess in the dark’ or tear down walls.

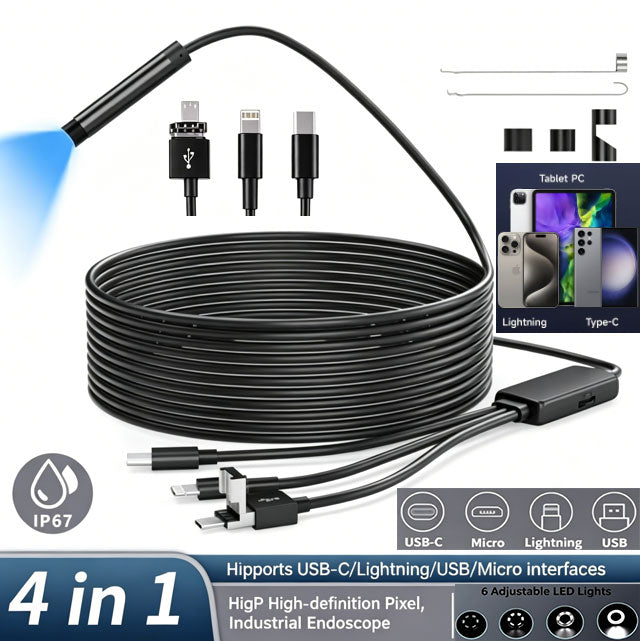

This 4-in-1 HD industrial endoscope features an ultra-slim 8mm flexible probe that can easily navigate gaps of 2–10 cm or even narrower. It uses your mobile phone or computer as a screen, eliminating the need for a bulky standalone unit, charging or a Wi-Fi connection. Plug and play – instantly revealing what lies in ‘invisible places’.
Why is this ‘4-in-1’ endoscope the top choice for maintenance technicians?
Traditional industrial endoscopes are either prohibitively expensive or only compatible with a single Android or iPhone model, limiting their practical applications. The core strength of this product lies in its exceptional ‘versatility’ and ‘professionalism’.
1. Universal compatibility: One device meets all your device needs
Whether you’re an iPhone 15 or later user with a USB-C port, a loyal Apple fan still using the Lightning connector, or a professional working on a computer, we’ve got you covered—this cable features an integrated 4-in-1 USB-C / Lightning / USB / Micro interface solution, fully compatible with iOS, Android and PC devices. Say goodbye to the hassle of searching for adapters; this is true “all-scenario compatibility”.
2. Professional Image Quality: Not Just Visible, But Crystal Clear
Equipped with a 200W (2MP) high-definition CMOS image sensor, it delivers 1080P (1920×1080) high-resolution images. The imaging technology has been algorithmically optimised to effectively remove noise, ensuring that even when inspecting pipes over 6mm in diameter, internal rust or weld defects are clearly visible. Combined with six dimmable LED cold light sources, it uniformly illuminates every corner, even in pitch-black sewer pipes where one cannot see their hand in front of their face.
3. IP67 Water Resistance: Unafraid of Damp and Underwater Work
Fully compliant with the IP67 industrial-grade waterproof standard. This means the camera is not only dustproof but can also operate normally for 30 minutes at a depth of 1 metre underwater. Whether inspecting damp bathroom pipes, conducting outdoor inspections in the rain, or examining sewage pipes filled with standing water, it operates reliably. The lens’s resistance to extreme temperatures and overall durability far exceed that of standard household equipment.
Multiple Specifications Available: Hard-wired & Various Lengths
To meet different inspection depth requirements, we offer multiple lengths and cable versions. Please select according to your specific application:
1m/2m/3m/5m Semi-Rigid Cable Versions:
Features: Semi-rigid cable design, offering flexibility and the ability to be freely shaped, providing support whilst maintaining a certain degree of curvature. Ideal for vertical deep inspections (e.g. deep wells, ventilation ducts).
Cable Diameter: Ultra-fine cable diameter for easier passage through curved pipes.
Recommended Applications: Automotive engine cylinder inspection, air conditioning duct clearance, narrow wall cavities.
Key Specifications Table
Product Name: 4-in-1 HD Industrial Endoscope
Lens Diameter: 8mm (approx. 0.31 inches)
Image Sensor : 2-megapixel CMOS HD sensor
Resolution: 1920×1080 (1080P Full HD) to 2560×1440
Frame rate: 30fps (smooth and lag-free)
Field of view: Approx. 45°–70° (adaptive based on focal length)
Focal length: 3cm–10cm (Optimal viewing distance)
Light source: 6 adjustable high-brightness LED cold light lamps
Waterproof rating: IP67 (Operational at depths of up to 1 metre)
Cable type: Semi-rigid / Hard wire
Cable length: 1m / 2m / 3m / 5m (various specifications available)
Connector type: USB-C / Lightning / USB-A / Micro USB
Compatible systems: iOS (9.0+), Android (6.0+), Windows, macOS
Operating temperature: 0°C ~ 70°C
Versatile applications
🔧 Car/motorbike repairs: Insert through the spark plug hole without dismantling the engine assembly to inspect carbon build-up inside cylinders and valve wear, and help locate the source of unusual noises.
🚰 Domestic Pipe Unblocking: Easily insert into U-bends, floor drains and toilet pipes. View in real time whether blockages consist of hair, hard objects or grease, enabling targeted unblocking.
🏠 Home & Building Inspection: Inspect for broken wires within walls, air conditioning ducts and internal corrosion in radiators, or even locate valuable items stuck in tight corners.
🔬 Professional Industrial/Research: Internal flaw detection in machinery, flow channel inspection of precision moulds, observation of laboratory animal nests, and archaeological work.
